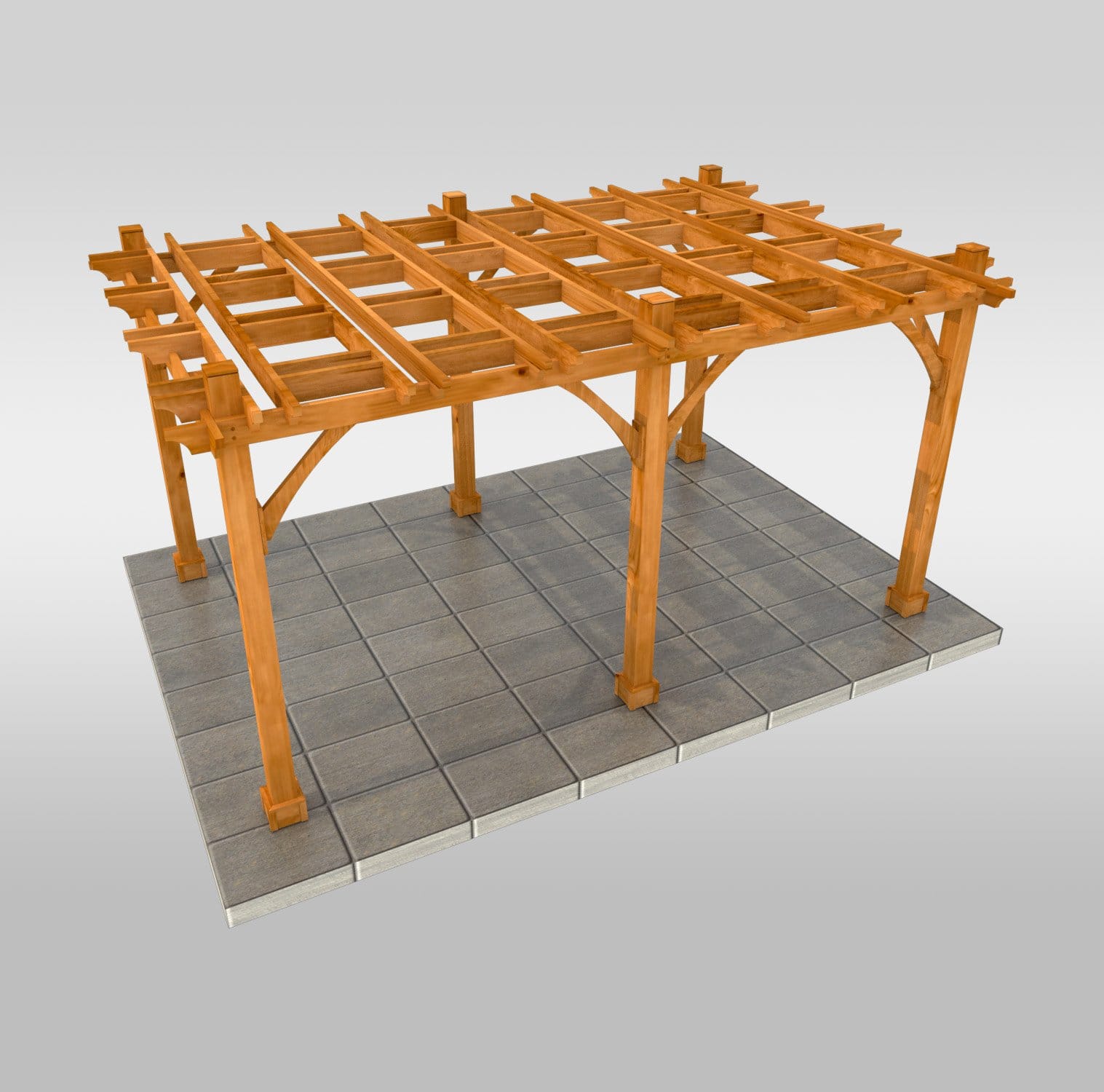

Our 5 star rated 10x16 modern pergola kit has an open-air design that can add charm and functionality to any outdoor living space. Constructed from sustainably harvested Western Red Cedar.
Our pergola assembles using only basic tools such as a screw gun, level and wrench. Assembly usually takes between 6-8 hours with 2 people. Post mount footings not included. (we recommend!)
Sculptured top joists and girders crisscross in both directions providing a architecturally stylish and beautiful feature. Engineered 5 ½ in. x 5 ½ in. vertical uprights results in a structural post that will have less surface checking and twisting. All pergola assembly hardware included with kit.
Take advantage of our weekend customer support line (1-888-658-1658) with any assembly questions.
Outdoor Living Today uses Real Western Red Cedar in our products and is a Proud Member of the Western Red Lumber Association.
The Western Red Cedar Lumber Association (WRCLA) is a Vancouver (Canada) based non-profit association representing 27 quality producers of Western Red Cedar lumber products in British Columbia, Washington, Oregon, and Idaho
Western red cedar construction is environmentally friendly, provides natural beauty and is resistant to decay and insects.

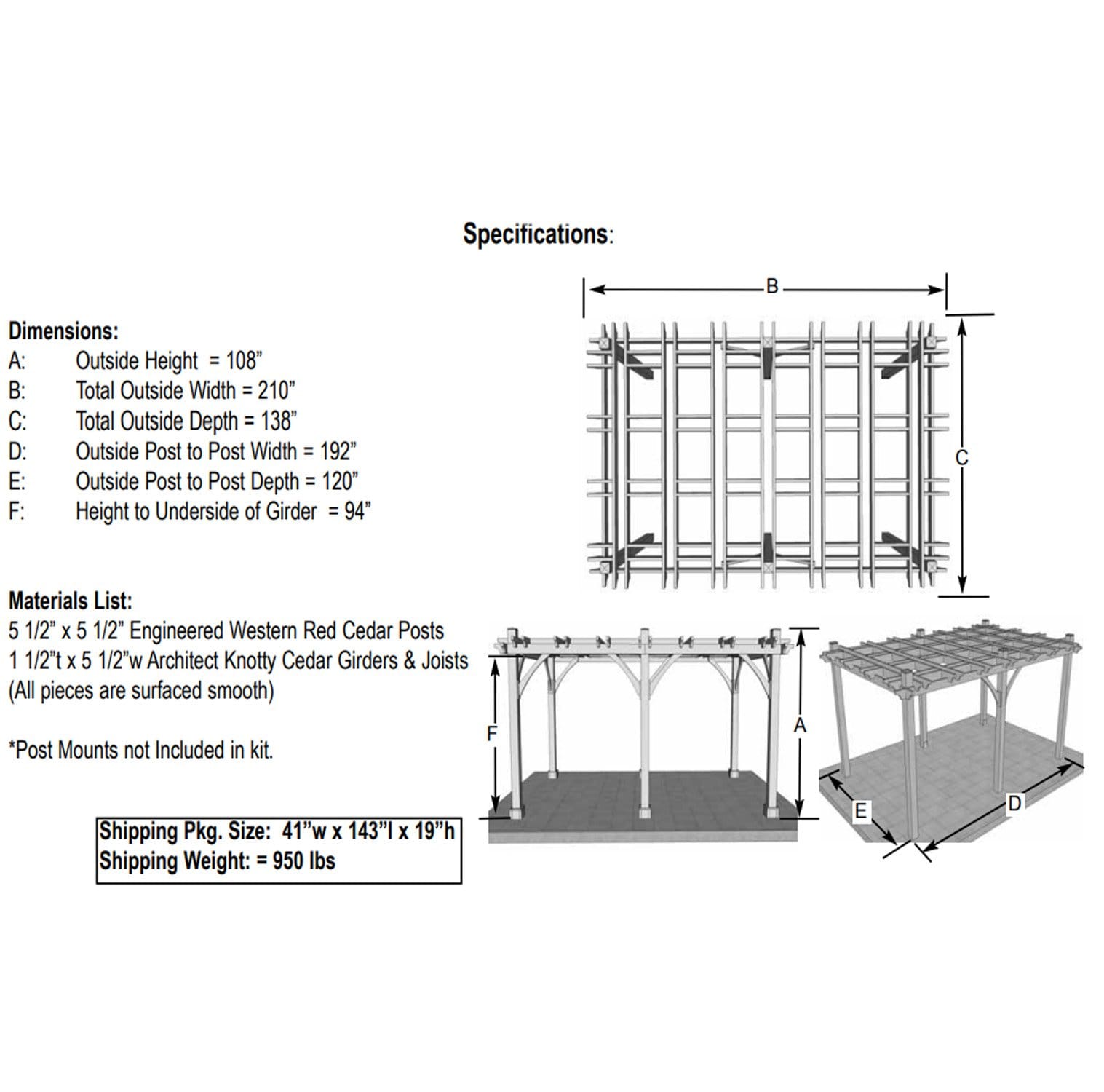

120 in. L x 192 in. W outside post to outside post dimensions.
Engineered 5 ½ in. x 5 ½ in. Finger-Jointed Cedar Posts provide an overall assembled height of 108 in.
138 in. L x 210 in. W overall dimensions including joist and girder overhang.
Includes notched and pre-marked western red cedar joists.
Includes notched and pre-drilled western red cedar girders.
Hardware included screws, nails and lagbolts, some stainless steel hardware.
6 sets of post skirting manufactured from western red cedar to conceal post mount hardware included.
Assembly time is approximately 6-8 hours for 2 persons depending on skill level.
Western red cedar is naturally resistant to decay and insects.
Product ships unstained.
Accepts a wide range of finishes to help you create a personalized look.
Made entirely with renewable resources.
Minimal tools required and hardware included.
Check with your local building, zoning and neighborhood association to obtain all applicable permits before ordering.
PLEASE NOTE: Post Mount Brackets recommended but not included in the Kit - you can purchase these as Optional Add-Ons.
Louvered Wall Panels
Looking for more privacy? Add a Louvered Panel to any side of your pergola. Keep panels open to let the sunshine in or close easily and quickly for added privacy.
Add on a Louvered Wall Panel to any side of your Breeze pergola.
Panels are easy to assemble.
Louvered panels are shipped in kit form and must be assembled on site.
Pieces must be ordered at time of pergola order and must ship with pergola.
Post Mount Brackets
We recommend using a Post Mount Bracket to secure pergola posts to your foundation.
Although the pergola is stable and strong without installing a bracket, installation of the brackets will firm up the structure and lessen the amount of sway that may occur with your structure. In areas of high winds, please check with your local building authority to confirm suitability.
The First Step is to line up your posts with the post mount brackets so you can drill the proper holes. Watch our Lining Up Posts & Brackets video to the right.
Instructions:
Line up Post Mount on bottom of post and mark hole location.
Using OLT’s footprint, drill holes in your foundation for Post Mount Rebar.
Make sure Post Mounts Brackets are installed at the proper height, adjust as necessary.
Fill drilled hole with Exterior Epoxy Glue as well as apply to Rebar Post.
Push or bang Post Mount Bracket in hole and let expoxy cure.
Line up Pergola Post holes previously marked with Post Mount Bracket holes.
Slide 6” carriage bolt through holes.
Slip washer on and tighten nut with wrench.
Complete remaining posts.
The Second Step
Different surfaces will require different styles of post mounts. The Second Step is to follow the specific instructions for either an Existing Slab Installation, or for Concrete Set Up Installation
Watch Lining Up Posts & Brackets
Shipping
Liftgate Delivery
If you ordered a liftgate delivery:
The driver will take your skid to the back of the truck, place it on the liftgate, lower it to the ground and place it next to the truck.
Use the plastic shipping tarp to cover and protect your pieces until you are ready start your project. When finished using it for this…repurpose it!
If liftgated down, take a minute or two to cut the straps and pull off the tarp. Check for corner damages, wood chips, sharp cuts and gauges in the product and if the pallet is broken.
Hand Offload Only:
If you did NOT order Liftgate Delivery, you will have to hand offload:
The driver will take your skid to the back of the truck, cut the straps and hand the pieces down to you. Most individual pieces weigh no more than 30-50 lbs.
There is a time limit of 15-20 free minutes so it is best to have someone there to assist you.
If hand offloading, briefly check all the pieces as they are handed to you.
On the morning of the delivery, call the carrier to confirm your shipment is on schedule. Carriers typically deliver between 9:00 a.m. and 5:00 p.m. - make sure you are present or have someone available to receive the shipment.
Make sure your delivery location is easily accessible to the truck and driver. Move vehicles if necessary. Drivers are not allowed to deliver freight that they deem dangerous to themselves or that may damage your property etc.
When the Truck Arrives:
While the unit is still in the truck, confirm the shipping label has your name, address and is the correct product. If not, call us immediately.
Damages - IMPORTANT
At the time of delivery, DO NOT SIGN until you have inspected the freight! Look inside the truck to make sure the unit is not damaged before unloading.
Occasionally thedriver will be in a rushand want you to sign quickly. It is your right to take a few minutes to inspect the freight.
If you notice any damages, please make the notation ‘damaged’ on the delivery receipt upon signing for the receipt of the goods. Take pictures of anything you think looks like damage, including the pallet and call our Customer support line at 1-888-658-1658.
If there is damage, it is usually quicker and easier to send replacement pieces.
It is our policy to replace any broken or damaged pieces immediately and to your satisfaction if this notation is shown on the proof of delivery on the carrier’s copy.
Remember - You do not have to accept the freight! If your freight shows catastrophic damage, ie – not on a pallet or with multiple pieces broken and sticking out and without our plastic wrap, you can refuse the delivery. Please call our customer support line at 1-888-658-1658 immediately so we can advise you how to proceed.
